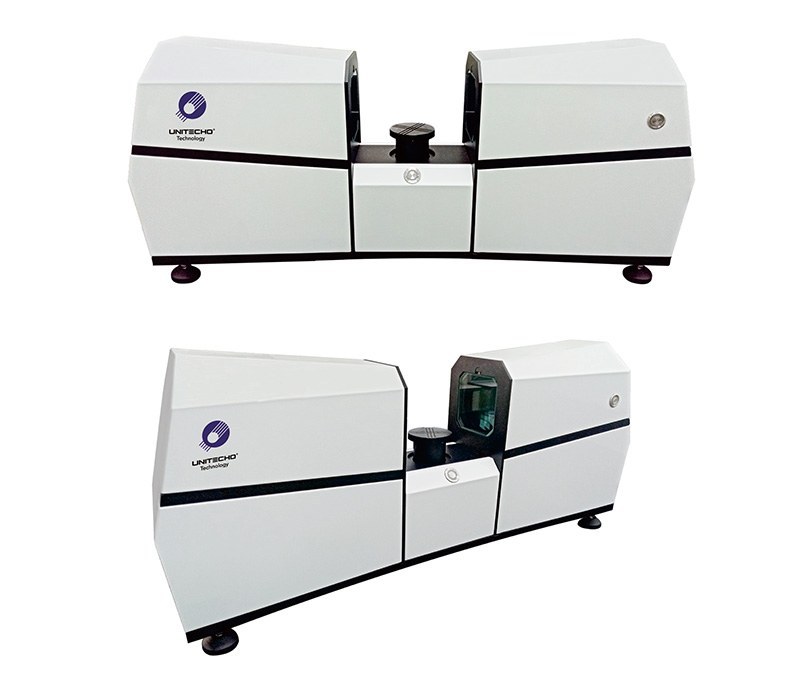

Horizontal One Button Vision Measuring Machine
Unitecho Horizontal One Button Vision Measuring Machine is designed for rapid industrial dimensional measurement with telecentric optics a 20 megapixel imaging system programmable lighting and IVT VISION software. It supports models OMQ100W OMQ120W OMQ190W and is suitable for precision parts that need fast repeatable measurement and visual inspection.
- Unitecho
- China
- To be confirmed based on model and customization
- Custom production and project supply
- Information
Horizontal One Button Vision Measuring Machine Overview
Unitecho Horizontal One Button Vision Measuring Machine is designed for rapid industrial dimensional measurement with telecentric optics a 20 megapixel imaging system programmable lighting and IVT VISION software. It supports models OMQ100W OMQ120W OMQ190W and is suitable for precision parts that need fast repeatable measurement and visual inspection.
Technical Specifications
Measurement Travel 82x55 mm 120x80 mm or 190x126 mm
Movement Automatic R axis movement
Optics Double telecentric optical lens
Sensor 20 megapixel industrial camera
Accuracy plus or minus 2.5 plus L over 50 um
Repeatability plus 1.5 um
Light 256 level programmable light with telecentric parallel contour light
Software IVT VISION
Display 0.00001 mm
Size 900x200x460 mm 1050x300x560 mm or 1700x680x130 mm
Load 5 kg 8 kg or 10 kg
Application Advantages
- One button automatic measurement for fast dimensional inspection
- Telecentric optical design for stable measurement accuracy
- Programmable lighting for different product surfaces and outlines
- IVT VISION software with advanced image analysis and sub pixel processing
- Custom options for special machine structure software functions lighting and camera configuration
Project Selection Notes
Send part drawings sample photos tolerance requirements and target inspection speed. Unitecho engineers can recommend the proper model camera lighting and fixture configuration for your measurement task. One Button Vision Measuring Machine Contact Unitecho
