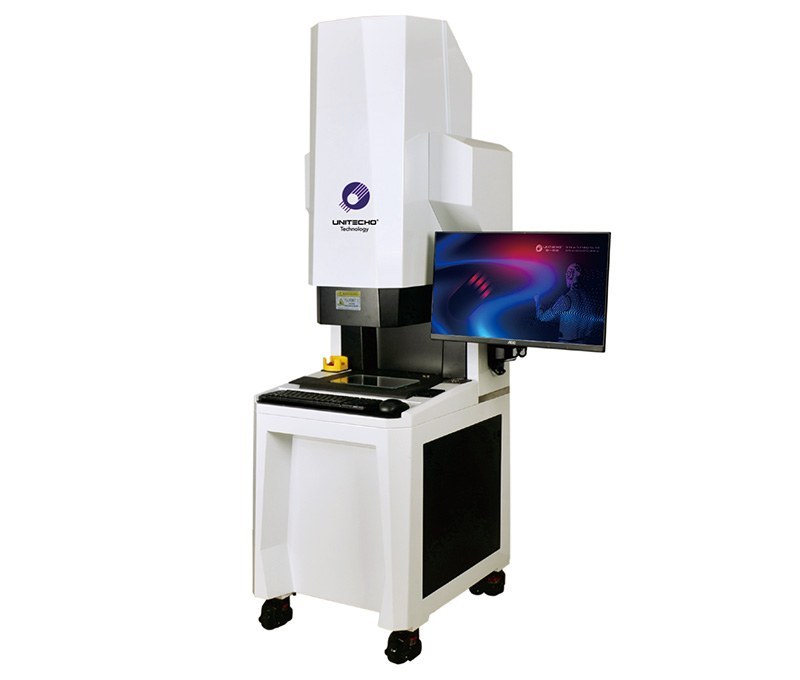

QMQ190 One Button Vision Measuring Machine
Unitecho QMQ190 One Button Vision Measuring Machine is designed for rapid industrial dimensional measurement with telecentric optics a 20 megapixel imaging system programmable lighting and IVT VISION software. It supports models OMQ190M OMQ190C and is suitable for precision parts that need fast repeatable measurement and visual inspection.
- Unitecho
- China
- To be confirmed based on model and customization
- Custom production and project supply
- Information
QMQ190 One Button Vision Measuring Machine Overview
Unitecho QMQ190 One Button Vision Measuring Machine is designed for rapid industrial dimensional measurement with telecentric optics a 20 megapixel imaging system programmable lighting and IVT VISION software. It supports models OMQ190M OMQ190C and is suitable for precision parts that need fast repeatable measurement and visual inspection.
Technical Specifications
Measurement Travel 190x126 mm
Movement Fixed or automatic Z axis movement
Optics Double telecentric optical lens
Sensor 20 megapixel industrial camera
Accuracy plus or minus 4.0 plus L over 50 um
Repeatability plus 2.0 um
Light 256 level programmable light with parallel contour light
Software IVT VISION
Display 0.00001 mm
Size 600x750x1850 mm
Load 10 kg
Application Advantages
- One button automatic measurement for fast dimensional inspection
- Telecentric optical design for stable measurement accuracy
- Programmable lighting for different product surfaces and outlines
- IVT VISION software with advanced image analysis and sub pixel processing
- Custom options for special machine structure software functions lighting and camera configuration
Project Selection Notes
Send part drawings sample photos tolerance requirements and target inspection speed. Unitecho engineers can recommend the proper model camera lighting and fixture configuration for your measurement task. One Button Vision Measuring Machine Contact Unitecho
